ACOUSTIC SILENCER SM15
Acoustic Silencer SM15
OPERATING PRINCIPLE
SM15 silencers are absorption type.
The gas passes through a duct lined with high acoustic efficiency sound absorbing material protected by perforated sheet metal.
DESCRIPTION
The nominal inlet diameter completes the designation of the silencer (P.e. SM15 DN100).
The inlet and outlet pipes are axial, the body is made of steel with a cylindrical shape closed by conical, flat or pumped bottoms, depending on the application.
![Silenciador acústico SM25. Silenciador acustico o atenuador acustico para escape de motor modelo sm15 Silenciador acústico SM25. Silenciador acustico o atenuador acustico para escape de motor modelo sm15](https://silensistem.com/wp-content/uploads/2020/11/ficha-silenciador-atenuador-acustico-escape-motor-15-dba.jpg)
PROTECTION
Silencer treatment by high-temperature finish paint.
The silencer is not provided to resist temperatures and pressures due to fuel explosions.
ACCESSORIES
Silencers can be provided with the following optional accessories:
- Flanges and counter flanges.
- Set of gaskets and screws.
- Supports.
- Spark extinction chamber.
For special equipment or special situations such as: temperatures above 500 ºC, diameters above 800 mm., Special steels, etc …
![Silenciador acustico o atenuador acustico para escape de motor modelo sm15 Silenciador acustico o atenuador acustico para escape de motor modelo sm15](https://silensistem.com/wp-content/uploads/2020/11/ficha-silenciador-atenuador-acustico-escape-motor-15-dba.bmp)
AVERAGE SOUND DIMMING CURVE
Measured under normal operating conditions and once the background noise has been eliminated. (Parasites)
According to ISO 6798 standard.
![graph of the mean sound attenuation curve of sm15 acoustic silencers graph of the mean sound attenuation curve of sm15 acoustic silencers](https://silensistem.com/wp-content/uploads/2020/12/acoustic-silencer-sm15-1.jpg)
ASSEMBLY
- ACOUSTIC SILENCER SM15
- The muffler must be mounted on the exhaust pipe.
- The direction of flow must be respected.
- Expansion compensator.
The silencer fixing system must allow its free expansion.
![Dibujo de como se realiza la insercion de un silenciador acustico sm15 en una maquina que genera ruido Dibujo de como se realiza la insercion de un silenciador acustico sm15 en una maquina que genera ruido](https://silensistem.com/wp-content/uploads/2020/11/ficha-silenciador-atenuador-acustico-escape-motor-15-dba_2.jpg)
DIMENSIONS
Length tolerance ± 3 mm.
Dimensions in mm. weight in kg.
![Table to choose the sm15 silencer according to its nominal diameter, long weight, etc. Table to choose the sm15 silencer according to its nominal diameter, long weight, etc.](https://silensistem.com/wp-content/uploads/2020/12/table-of-contents-sm15.jpg)
![Sketch of the sm15 acoustic silencer and its flow direction Sketch of the sm15 acoustic silencer and its flow direction](https://silensistem.com/wp-content/uploads/2020/12/sketch-sm15.jpg)
![Ficha silenciador acústico o atenuador acústico de escape motor 15 dBA Ficha silenciador acústico o atenuador acústico de escape motor 15 dBA](https://silensistem.com/wp-content/uploads/2020/11/ficha-silenciador-atenuador-acustico-escape-motor-15-dba_4-1-rotated.jpg)

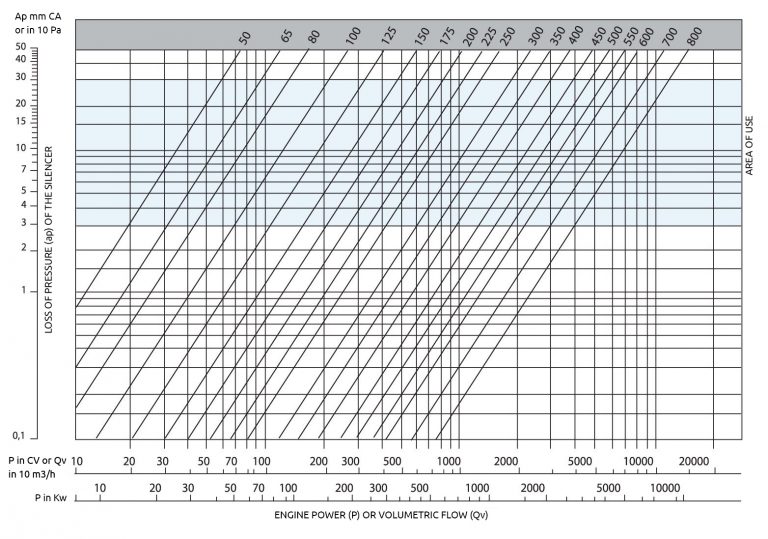

DETERMINATION OF THE NOMINAL DIAMETER SILENCER
![Acoustic insulation table relating power or volumetric flow of the motor and the pressure drop of the silencer marking the area of use of this model Acoustic insulation table relating power or volumetric flow of the motor and the pressure drop of the silencer marking the area of use of this model](https://silensistem.com/wp-content/uploads/2020/12/sm15-acoustic-silencer-graphic.jpg)
